• Wheels, 17" x 7.5" (43.2 cm x 19.1 cm) painted cast aluminum
• Tires, P235/65R17 front and P255/60R17 rear Goodyear, H-rated, all-season, blackwall
• Roof rails, black
• Headlamps, halogen Tungsten, windshield wiper-activated with Twilight Sentinel and flash-to-pass feature
• Fog lamps, front, integral in front fascia
• Glass, Solar-Ray deep-tinted mid-rear-side and liftgate
• Mirrors, outside heated power-adjustable, body-color, manual-folding
• Wipers, front intermittent with washers
• Wiper, rear intermittent with washer
• Liftgate, rear power

• Audio system, AM/FM stereo with CD player Radio Data System (RDS) and (UQA) Bose premium 8-speaker system
• Audio system feature, Bose premium 8-speaker system, includes dual speakers in windshield pillars, front and rear doors, rear quarter and instrument panel and amplifier (Included with (U2R) AM/FM stereo with CD player and (U2S) AM/FM stereo with 6-disc in-dash CD changer.)
• XM Satellite Radio. With a wide variety of programming, XM has something to excite any driver. Whether you want to be entertained or informed, to laugh, think, or sing, XM has the perfect channel for you - coast-to-coast, and in digital-quality sound. 3 trial months - no obligation. (Available in the 48 contiguous United States. Required $12.95 monthly subscription sold separately after 3 trial months. All fees and programming subject to change. Subscription subject to customer agreement. For more information, visit gm.xmradio.com.)
• Antenna, integral front and rear

• Seats, front bucket includes 8-way power driver seat adjuster and articulating head restraints
• Seat adjuster, front passenger manual recline
• Seats, second row 60/40 split-bench, adjustable
• Armrest, front center
• Armrest, rear center with dual cup holders
• Console, floor with floor shifter, integral armrest, storage compartment and cup holders
• Floor mats, carpeted front and rear
• Steering column, Tilt-wheel, adjustable
• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio, HVAC system and cruise controls
• Instrumentation, analog with speedometer, tachometer and fuel gauge
• Fuel gauge, analog
• Tire Pressure Monitor
• Windows, power with front and rear Express-Down, front Express-Up and rear passenger lockout
• Door locks, power programmable
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Cruise control, electronic with set and resume speed
• Remote Keyless Entry
• Adaptive Remote Start
• Theft-deterrent alarm system
• Theft-deterrent system, vehicle, PASS-Key III+
• Climate control, dual-zone automatic with individual climate settings for driver and right-front passenger
• Defogger, rear-window
• Mirror, inside rearview auto-dimming with compass display and OnStar controls
• Visors, driver and front passenger illuminated vanity mirrors
• Cargo cover

• StabiliTrak
• Brakes, 4-wheel antilock, 4-wheel disc with Brake Assist
• Daytime Running Lamps
• OnStar, 1-year of Directions & Connections plan. Includes the innovative easy to use Turn-by-Turn Navigation services which provide voice-guided directions (where available). Also includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, Remote Horn and Lights, Information and Convenience Services, and Driving Directions (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Turn-By-Turn Navigation requires ABS and is not available in certain areas. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Air bags, dual-stage frontal and side impact, driver and right-front passenger and head curtain side-impact, front and rear outboard seating positions, includes Passenger Sensing System (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and outboard rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, all seating positions
• Child seat restraint system
• Door locks, rear child security

ENGINE, 3.6L VARIABLE VALVE TIMING V6 SFI

• (255 hp [190.2 kW] @ 6500 rpm
• 254 lb-ft of torque [342.9 N-m] @ 2800 rpm) (STD)

• Vehicle
• Rear Door Type: - TBD -
• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 11.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): - TBD -
• Gross Axle Wt Rating - Rear (lbs): - TBD -
• Curb Weight - Front (lbs): 2160
• Curb Weight - Rear (lbs): 2160
• Gross Vehicle Weight Rating Cap (lbs): - TBD -
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): N/A
• Wt Distributing Hitch - Max Tongue Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): N/A
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): N/A
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Independent
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: - TBD -
• Axle Ratio (:1) - Rear: - TBD -
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Rear (in): 0.87
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.7 x 1.26
• Rear Brake Rotor Diam x Thickness (in): 12.6 x 1.02
• Tires
• Front Tire Order Code: Q15
• Rear Tire Order Code: Q15
• Front Tire Size: P235/65HR17
• Rear Tire Size: P255/60HR17
• Spare Tire Size: - TBD -
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr speed-sensitive
• Steering Ratio (:1), On Center: 20
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.7
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 20
• Fuel Tank Location: - TBD -
• Doors
• Side Door Type: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.4
• Length, Overall w/rear bumper (in): 194.9
• Width, Max w/o mirrors (in): 72.6
• Height, Overall (in): 67.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Side Door Opening Height (in): - TBD -
• Side Door Opening Width (in): - TBD -
• Step Up Height - Front (in): 19.2
• Step Up Height - Side (in): 19.2
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 69.5
• Cargo Volume to Seat 2 (ft³): 32.4
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.3
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 58.7
• Front Hip Room (in): 56.3
• Second Head Room (in): 38.4
• Second Leg Room (in): 41.0
• Second Shoulder Room (in): 57.6
• Second Hip Room (in): 56.3
• Summary

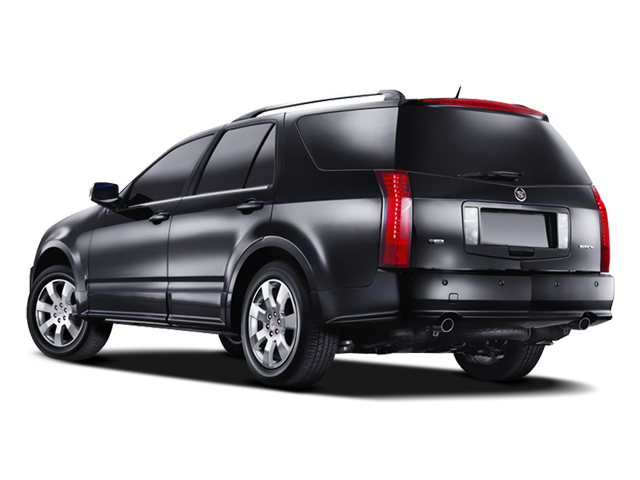

• Vehicle Name: Cadillac SRX
• Body Style: 4 Door
